gobo-vscode
Class Contract Views
The Eiffel VS Code extension can show the contract view of a class. The contract-view of a class is a pretty-printed view of its class text where internal implementation details are hidden. Therefore what is shown is not valid Eiffel code, but rather an interface representation of the class, also known as short form. Only exported features, their pre- and postconditions, class invariants, and exported creation procedures are retained. Assertions containing calls to non-exported features are also omitted.

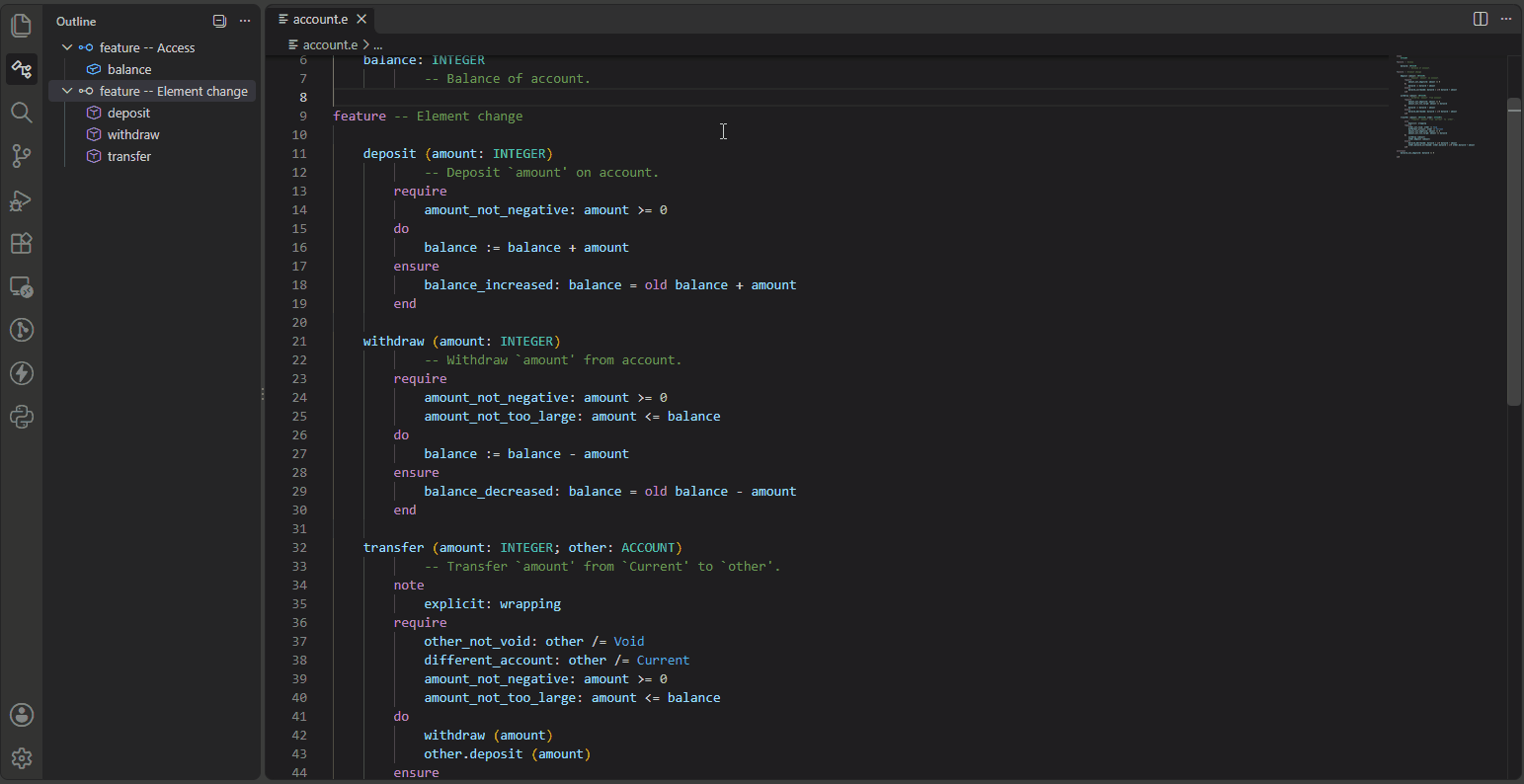

Contract View
From the contextal menu:
- Select Class and Feature Views, and then
- Select Show Contract View
The contract view of the class is displayed in a separate read-only editor. Code navigation is available like in full class texts. And the label of the editor tab indicates that this is the Contract View of the class.

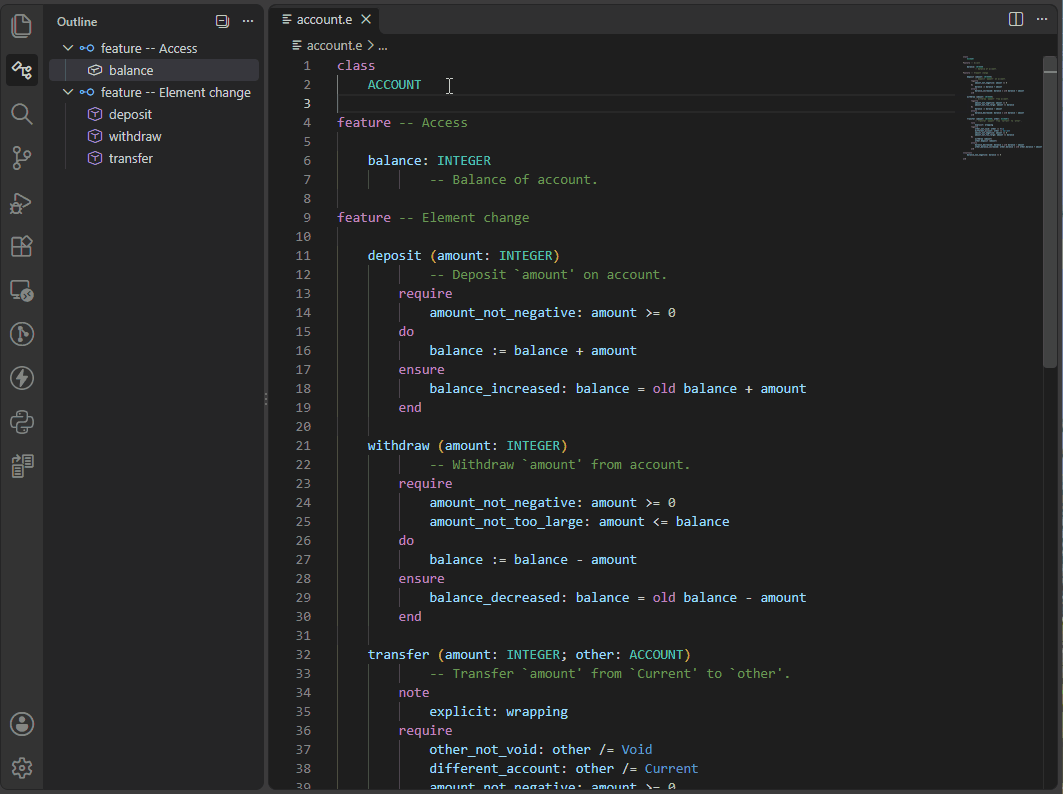

Flat Contract View
The contract view shows only features and invariants declared in the class itself, whereas the flat contract view, also known as flat short form, also includes inherited features and invariants.
From the contextal menu:
- Select Class and Feature Views, and then
- Select Show Flat Contract View
