gobo-vscode

Gobo Eiffel for Visual Studio Code

Bring the power of the Gobo Eiffel toolchain directly into Visual Studio Code, providing full language support for the Eiffel programming language. This extension lets you edit, navigate, compile and run Eiffel programs seamlessly — ideal for both beginners discovering Eiffel and experienced developers who want an efficient workflow.

🚀 Quick Start

Start coding in Eiffel instantly — from a single file to full multi-library projects.
Gobo Eiffel supports both a simple Beginner workflow and an advanced Workspace + ECF workflow.

1️⃣ Beginner: Hello World

New to Eiffel? Start with a minimal project in seconds:

1. Open an empty folder in VS Code.

2. Create a new Eiffel project:
   • Open the Command Palette with Ctrl+Shift+P (or Cmd+Shift+P on MacOS).
   • Type Gobo Eiffel and select Gobo Eiffel: Create Eiffel Project….
   • Enter a project name such as hello_world and press Enter.

3. If this is your first time using the extension, VS Code will guide you through installing Gobo Eiffel.

4. A ready-to-run Eiffel project is created automatically, including its ECF configuration file.

You can now edit, customize, compile and run your Eiffel program directly from VS Code.

2️⃣ Advanced: Workspace with ECF File

For larger Eiffel projects with multiple classes, libraries, or targets:

1. Open your Eiffel project folder in VS Code.

2. When prompted, select the workspace ECF file, target, and optional environment variables used by the project.

3. The extension automatically enables advanced Eiffel tooling across the workspace, including:

   • Code navigation (definitions, implementations, type definitions)
   • Feature callers/callees exploration
   • Client/supplier relationship analysis
   • Inheritance hierarchy exploration
   • Context-aware code completion
   • Inline error reporting
   • Compilation and execution

🧩 At a Glance

Capability	Description
Syntax highlighting	Full Eiffel syntax grammar with modern highlighting
Code completion	Context-aware completion for classes and features
Navigation	Jump to definitions, implementations and types
Hierarchy exploration	Call hierarchy, client/supplier relationships and inheritance trees
Compilation	Compile and run Eiffel programs directly from VS Code
Error reporting	Inline errors and integration with the Problems panel
Execution	Launch configurations
Integrated terminal	Preconfigured Gobo Eiffel command-line environment

✨ Features

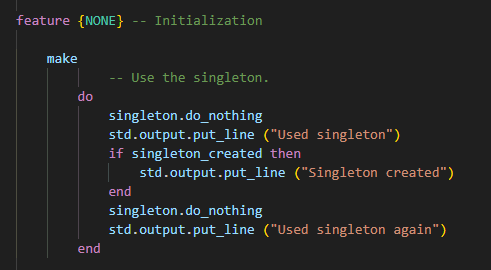

• Syntax highlighting & language support

  Eiffel keywords, comments and strings are highlighted using an up-to-date Eiffel grammar.

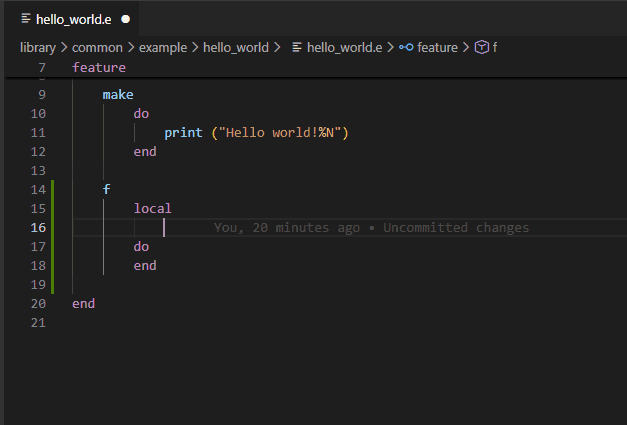

• Code completion

  Intelligent auto-completion for Eiffel code as you type, including class names, feature names, and context-aware suggestions based on the current scope and static type information.

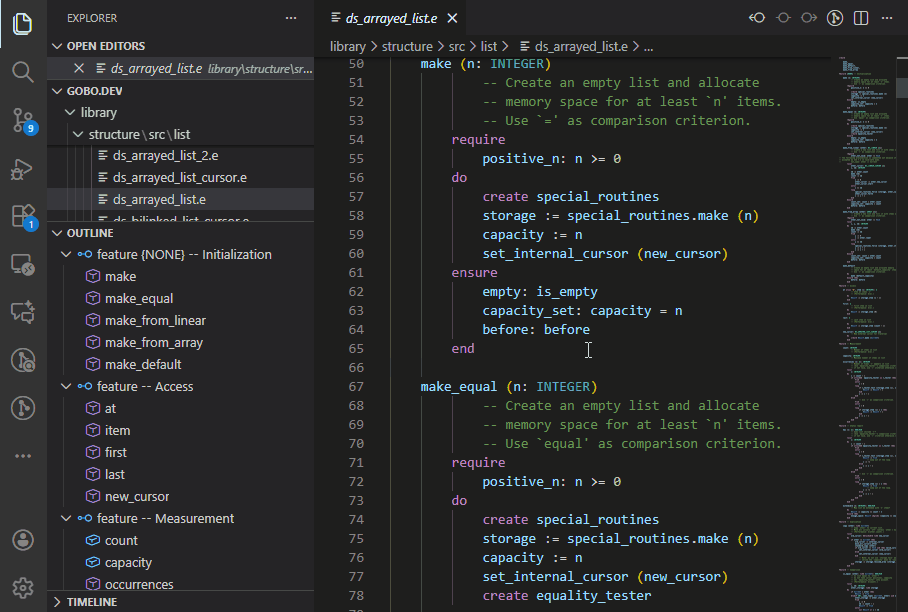

• Feature navigation

  Quickly jump to a feature or feature clause within the current class from the Outline panel.

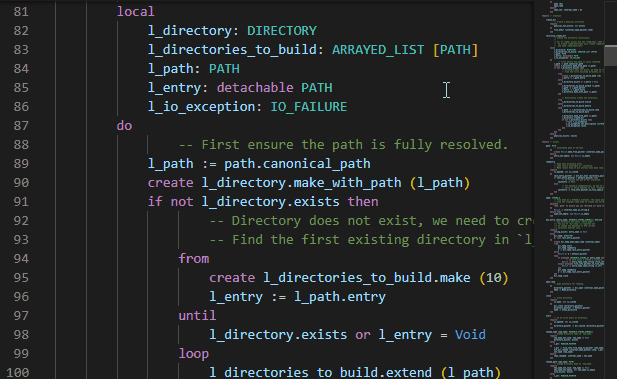

• Feature signatures

  Hover to view variable types and feature signatures directly in tooltips.

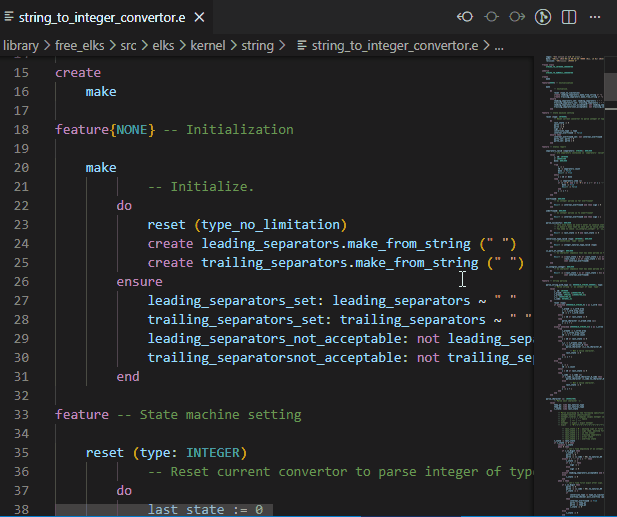

• Go to definition

  Navigate instantly to the definition of variables and features using the contextual menu.



• Compile & run from VS Code

  • Command to compile the current Eiffel file from the Command Palette or contextual menus.
  • Automatically run after compilation in the Terminal panel.
  • Set arguments and environment variables using Launch Configurations.
  • Generate and use ECF files for more advanced compilation settings.



• Inline error reporting

  Compilation errors appear as you type, with red squiggles in the Editor and entries in the Problems panel. Click an error to jump directly to its location.



• Integrated Eiffel Terminal

  Open a preconfigured terminal with Gobo Eiffel’s environment set up automatically, ready for command-line use.



• Debug configurations

  Easily create launch configurations for your Eiffel programs. Pass custom arguments and environment variables, and choose between compile & run, compile-only or run-only modes from the Run And Debug panel or by pressing F5.



• Automatic installation of Gobo Eiffel binaries

  If needed, the extension can download and install Gobo Eiffel and automatically check for updates.

🧭 Code Navigation

The Gobo Eiffel extension provides rich navigation features that are fully integrated with standard VS Code commands and tailored to the Eiffel language.

You can quickly explore classes, features, inheritance hierarchies, and type relationships across your entire workspace, including library code.

Symbol Navigation

• Go to Definition: Navigate to the declaration of features, variables, classes, arguments, locals, and other Eiffel symbols.
• Go to Type Definition: Jump directly to the class that defines the type of a symbol.
• Go to Implementations: Explore precursors and redeclarations of features across ancestor and descendant classes.
• Class and Feature Search: Quickly search for classes and features using the VS Code search bar and symbol navigation commands.

Hierarchy Exploration

Understand relationships between features and classes through call hierarchies, dependency relationships, and inheritance trees.

• Feature Callers/Callees: Explore features that call or are called by a given feature.
• Client/Supplier Classes: Explore the client and supplier relationships of a given class.
• Ancestor/Descendant Classes: Navigate the inheritance hierarchy of a class.

⚙️ User Settings

You can customize the extension in VS Code’s Settings (File → Preferences → Settings → Extensions → Gobo Eiffel) or via settings.json.

Setting	Description	Default
gobo-eiffel.automaticUpdateCheck	Automatically checks for new Gobo Eiffel releases.	true
gobo-eiffel.useNightlyBuild	Use Gobo Eiffel nightly build instead of the latest release.	false
gobo-eiffel.workspaceEcfFile	ECF file to analyze Eiffel classes in current workspace.	null
gobo-eiffel.workspaceEcfTarget	Target in ECF file to analyze Eiffel classes in current workspace.	null
gobo-eiffel.workspaceEnvironmentVariables	Environment variables used when resolving ECF files.	{}

The last three settings are workspace-specific settings used to specify the workspace ECF file, which allows the Eiffel analyzer to discover and analyze the classes used in the current project.

You can also create multiple launch configurations in .vscode/launch.json with different arguments or environment variables for each program.

📦 Commands

All commands are available from the Command Palette or contextual menus:

• Compile & Run With Workspace ECF File
• Compile With Workspace ECF File
• Run With Workspace ECF File
• Lint With Workspace ECF File
• Compile & Run With Current ECF File
• Compile With Current ECF File
• Run With Current ECF File
• Lint With Current ECF File
• Compile & Run Eiffel File
• Compile Eiffel File
• Run Eiffel File
• Lint Eiffel File
• Create Eiffel Project
• Create ECF File
• Select Workspace ECF File
• Select Current File as Workspace ECF File
• Show Workspace ECF File
• Set Environment Variables
• New Gobo Eiffel Terminal

📚 More Information

• Gobosoft
• Gobo Eiffel Documentation
• Gobo Eiffel Code Repository
• Eiffel Language Reference

---

Happy Eiffel coding in VS Code! 🚀
